Energy chain complete set

Categories
Energy chains
Energy chains for linear motion
triflex Energy chains for 3D movement
Rotary movements
Special solutions
Accessories
Complete set
Replacement parts
smart IoT solutions
Filter
Dimension
Application areas
System
List
Tile

Number of products: 22

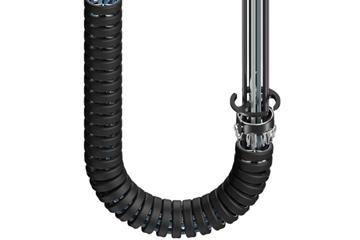

e-loop® complete set
e-loop® complete set
Please select your top drive system. You will then automatically be offered the appropriate complete set.

1 complete set consists of:

+ mounting brackets
+ e-loop® energy chain
+ strain relief
90,708.19 NZD/Pc.
7 in 8 weeks from stock Germany
To the product page

Complete set E4.32 | Travel: 8-24m | Inner height: 32mm
Complete set E4.32 | Travel: 8-24m | Inner height: 32mm
1 complete set consists of:

energy chains of the  E4.32 series
+ mounting brackets
+ guide trough with glide bar
+ guide trough without glide bar
+ screwdriver
+ separators
+ strain reliefs

* grey-marked products are optional:
+ real-time condition monitoring with smart plastics
3,611.07 NZD/Pc.
216 in 72 hours from stock Germany
To the product page

Complete set E4.42 | Travel: 8-24m | Inner height: 42mm
Complete set E4.42 | Travel: 8-24m | Inner height: 42mm
1 complete set consists of:

energy chain of E4.42 series
+ mounting brackets
+ guide trough with glide bar
+ guide trough without glide bar
+ screwdriver
+ separators
+ strain reliefs

* grey-marked products are optional:
+ real-time condition monitoring with smart plastics - i.Sense EC.W
4,664.84 NZD/Pc.
216 in 72 hours from stock Germany
To the product page

Complete set E4.56 | Travel: 8-24m | Inner height: 56mm
Complete set E4.56 | Travel: 8-24m | Inner height: 56mm
1 complete set consists of:

energy chain of E4.56 series
+ mounting brackets
+ guide trough with glide bar
+ guide trough without glide bar
+ screwdriver
+ separators
+ strain reliefs

* grey-marked products are optional:
+ real-time condition monitoring with smart plastics - i.Sense EC.W
5,390.67 NZD/Pc.
216 in 72 hours from stock Germany
To the product page

autoglide 5 - steel cable floor guide - 2400AG5 complete set | Travel: 10 - 60m
autoglide 5 - steel cable floor guide - 2400AG5 complete set | Travel: 10 - 60m
1 complete set consists of:

+ mounting brackets for moving ends
+ wire rope
+ individual parts AG5 and AG
+ energy chain
+ fixed end module
+ assembly instructions
+ upper run guide
+ cable tensioner unit
+ track holder for AG
+ separators for each 2nd link, pre-assembled

2,826.09 NZD/Pc.
104 in 3-5 working days from stock Germany
To the product page

rol e-chain® 4040RHDB | Guide trough made of aluminium [Travel: 25-200m]
rol e-chain® 4040RHDB | Guide trough made of aluminium [Travel: 25-200m]
1 complete set consists of:

4040RHDB series rol e-chain® (2m pieces)
+ mounting brackets
+ aluminium guide trough with glide bar
+ aluminium guide trough without glide bar
+ screwdriver
+ floating moving end (FTA)
+ separators
+ strain relief

* grey-marked products are optional:
+ smart condition monitoring with smart plastics
33,874.81 NZD/Pc.
66 in 4 weeks from stock Germany
To the product page

rol e-chain® 4040RHDB | Galvanised steel guide trough [Travel: 25-200m]
rol e-chain® 4040RHDB | Galvanised steel guide trough [Travel: 25-200m]
1 complete set consists of:

4040RHDB series rol e-chain® (2m pieces)
+ mounting brackets
+ screwdriver
+ steel guide trough with glide bar
+ steel guide trough without glide bar
+ floating moving end (FTA)
+ separators
+ strain relief

* grey-marked products are optional:
+ intelligent condition monitoring with smart plastics
38,362.72 NZD/Pc.
66 in 4 weeks from stock Germany
To the product page

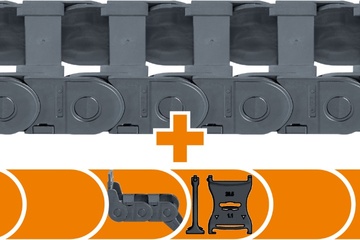

Complete set E2i.26 for CNC milling machines | Inner height: 26mm | Travel: 300-3000mm
Complete set E2i.26 for CNC milling machines | Inner height: 26mm | Travel: 300-3000mm
1 complete set consists of:

  • Mounting brackets
  • 2 energy chains of the series E2i.26 for X and Y-axis
  • Separators
164.14 NZD/Pc.
558 ready for shipping in 3 - 4 working days
To the product page

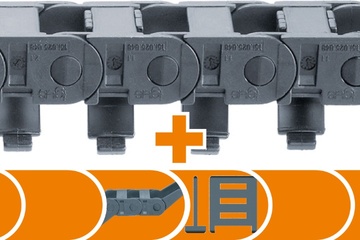

Complete set B15i for CNC milling machines | Inner height: 17mm | Travel: 300-2000mm
Complete set B15i for CNC milling machines | Inner height: 17mm | Travel: 300-2000mm
1 complete set consists of:

+ mounting brackets
+ 2 B15i series energy chains for X and Y axes
+ separators
85.35 NZD/Pc.
44 in 72 hours from stock Germany
To the product page

Polymer Rotation Module PRM - complete set [rotation angle: up to 360°]
Polymer Rotation Module PRM - complete set [rotation angle: up to 360°]
1 complete set consists of:

igus® energy chain with reverse bend radius
+ mounting brackets
+ guide trough
+ separators
+ strain relief

Recommended mounting position: floor
1,500.27 NZD/Pc.
15 in 72 hours from stock Germany
To the product page

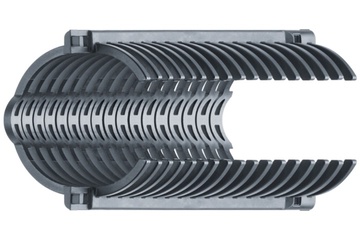

e-rib set | Strengthens corrugated tubes in CNC milling machines | Nominal width: 36 mm
e-rib set | Strengthens corrugated tubes in CNC milling machines | Nominal width: 36 mm
  • A set consists of:
    • 8 - 16 e-ribs
  • Easy to retrofit
  • Increase in the service life of cables
  • Strength prevents unintentional sideways movement
87.54 NZD/Pc.
13 in 72 hours from stock Germany
To the product page

basic flizz® - complete set [travels: 10 - 100 m]
basic flizz® - complete set [travels: 10 - 100 m]
1 complete set consists of:

E4.28 series e-chain® (2 metre pieces)
+ mounting brackets
+ encased stainless steel guide trough (3 metres per segment)
+ screwdriver
+ floating moving end (FTA)
+ adjustable moving arm
+ separators
+ strain relief

* grey-marked products are optional (depends on selection)
+ CF9.25.12 chainflex® TPE control cable 12G2.5mm²
+ smart plastics push/pull force detection (i.Sense EC.P (a.o. with 3D data, function video, ...))

Prices for sets with chainflex® cable exclude copper surcharge.
19,845.64 NZD/Pc.
76 in 2 weeks from stock Germany
To the product page

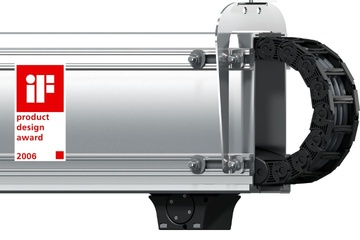

micro flizz® complete set | total length:1 m - 10m
micro flizz® complete set | total length:1 m - 10m
1 complete set consists of:
+ energy chain
+ guide carriage
+ guide channel

  • Easy to clean
  • No particle pollution due to abrasion
  • Quiet, lubrication-free, and easy to install
  • Operating speeds of up to 6 m/s in high-acceleration applications
  • Data rates up to 10 Gbit/s. Safely guides FOC and bus cables
  • Low space requirement
654.28 NZD/Pc.
50 in 10 working days from stock Germany
To the product page

Complete set YE.42 hybrid energy chain | Inner height: 42mm | Travel: 6 - 18m
Complete set YE.42 hybrid energy chain | Inner height: 42mm | Travel: 6 - 18m
1 complete set consists of:
+ hybrid energy chain
+ metal mounting bracket
+ separators

  • Almost 50% less weight
  • 50% longer unsupported length
  • High tensile strength
  • Suitable for applications: lifting climbers, construction machinery, lifting platforms, telescopic loaders, work platforms
2,347.69 NZD/Pc.
100 in 72 hours from stock Germany
To the product page

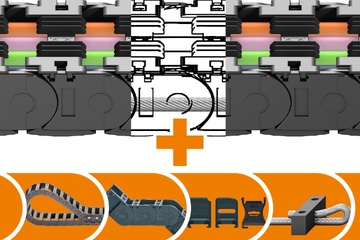

autoglide 5 - steel cable floor guide - 2600AG5 complete set | Travel: 10 - 60m
autoglide 5 - steel cable floor guide - 2600AG5 complete set | Travel: 10 - 60m
1 complete set consists of:

+ mounting brackets for moving ends
+ wire rope
+ individual parts AG5 and AG
+ energy chain
+ fixed end module
+ assembly instructions
+ upper run guide
+ cable tensioner unit
+ track holder for AG
+ separators for each 2nd link, pre-assembled

2,851.28 NZD/Pc.
208 in 3-5 working days from stock Germany
To the product page
